A VLAN is a tool. The useful decision is which devices should communicate, and why.
Draw the boundaries.
Connection
Internet & location
Firewall
Rules & remote access
Network zones
Work · guests · IoT
WorkGuestsIoT
Group devices by purpose

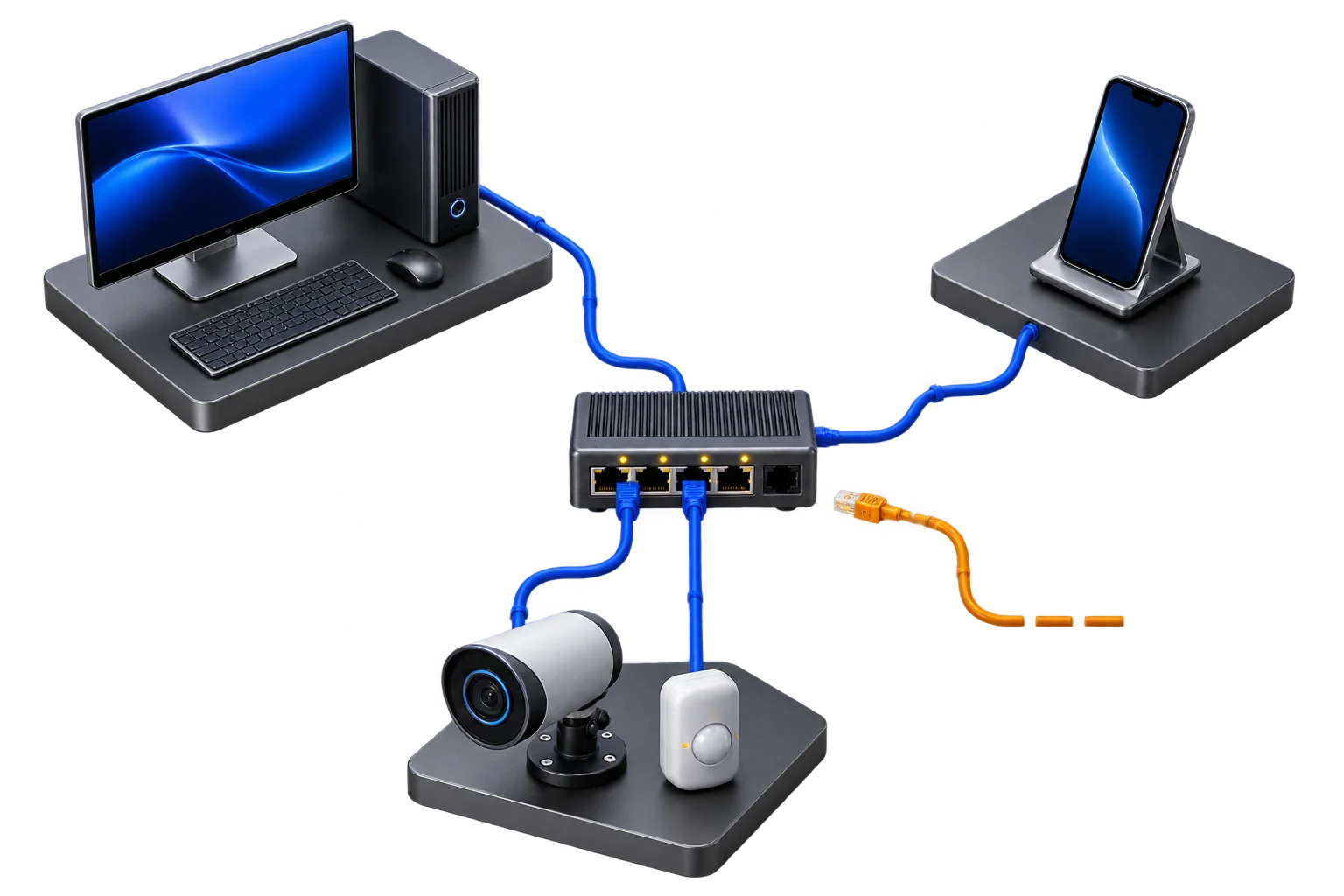

Start with people and devices: workstations, visitors, lab services and connected home devices. List the connections each group actually needs. Separate management access from ordinary use.
Follow the path end to end
A network segment depends on more than the router. Ports, uplinks, access points and clients need a consistent design. A simple port map helps locate the point where the intended boundary stops matching the configuration.
Plan changes with a way back
Keep a protected copy of the current configuration and an independent management path. Change one part at a time and check a known connection before moving to the next part.
Test the rule intent
Check both the connections that should work and those that should be blocked. Record the test points so the same checks can be repeated after an update.
